China YC 12-Zone Lead-Free SMT Reflow Oven for PCB Assembly Manufacturer, Factory

China YC 12-Zone Lead-Free SMT Reflow Oven for PCB Assembly Manufacturer, Factory

The 12-zone hot air reflow oven is built for SMT production lines that demand tighter process control and higher soldering consistency. With extended heating zones and more refined temperature segmentation, it allows smoother and more precise temperature profiling. The optimized micro-circulation hot air convection system ensures excellent thermal uniformity across the entire PCB, making it ideal for multilayer boards, high-density assemblies, and lead-free soldering. Stable performance, user-friendly control, and energy-efficient operation make it a reliable choice for high-end electronics manufacturing.

Send Inquiry

Product Description

Technical Specification

Model	YC-H1200AF
Dimensions	6950×1350×1550mm
Weight	Approx. 2300kg
Heating Zones	12 zones (top/bottom)
Cooling Zones	3 Zones
Power Supply	380V, 50/60Hz, 3-Phase
Total Power	64Kw

Core Features

12-Zone Reflow Oven

Independent top and bottom hot air circulation
12 heating zones with optimized thermal distribution
High-response PID control with solid-state relay
Modular structure for easy maintenance

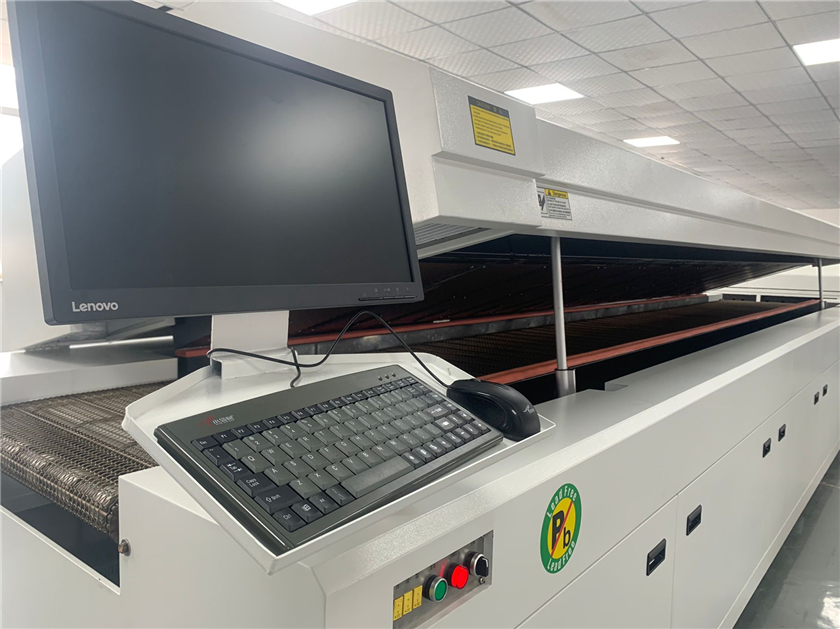

Intelligent Control Platform

Industrial-grade computer system
Multilingual user-friendly interface
Unlimited profile storage and traceability
Real-time graphical temperature monitoring

Control System

Optional Upgrades

Upgrades

• Nitrogen Protection System: Low-oxygen atmosphere for superior soldering.

• Heavy-Duty Conveyor: Designed for large/heavy PCBs.

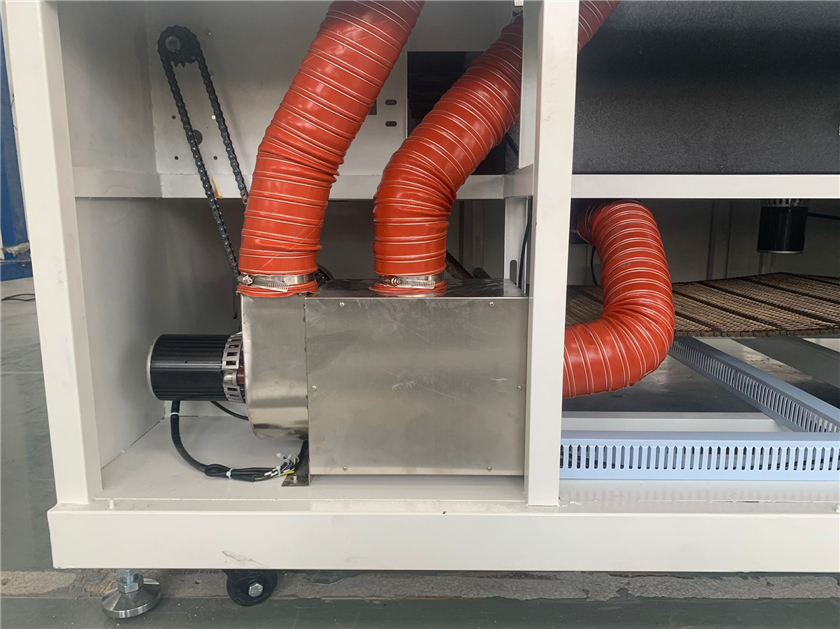

• Enhanced Cooling: Optimized cycle time reduction.

Gallery

Frequently Asked Questions

What is the primary use of this oven?

It is designed for high-precision SMT reflow soldering processes.

How many heating zones are available?

The system features 12 independent heating zones.

Is the interface multilingual?

Yes, the control platform supports multiple languages.

Can I customize the machine size?

Yes, dimensions and configurations can be tailored to your layout.

Does it support nitrogen?

Yes, a nitrogen protection system is available as an optional upgrade.
