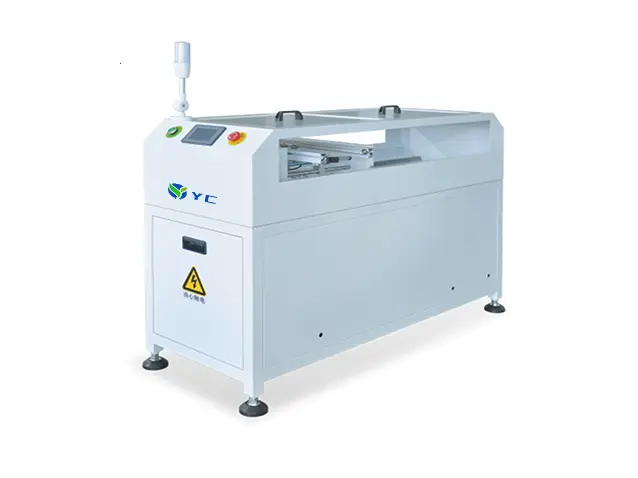

Cheap YC Automatic PCB Shuttle Conveyor for SMT Assembly Lines Manufacturer, Exporter

SMT parallel transfer machine is a key equipment in SMT production line that connects single and double track equipment. It is mainly used to distribute PCB boards from a single track production line to the double track equipment (diversion), or merge PCBs from two production lines into one equipment (merging), flexibly adapting to different production capacity requirements, thereby optimizing production line balance and improving equipment utilization.

Send Inquiry

Product Description

Specification

Item	YC-130YZ	YC-280YZD	YC-420YZD	YC-500YZD
Overall Dimensions (mm)	1300×500×1350	2800×500×1350	4200×500×1350	5000×500×1350
PCB Size Range (mm)	50×50~450×350	50×50~450×350	50×50~450×350	50×50~450×350
Width Adjustment	Manual / Automatic (Optional)
Transfer Direction	Left → Right / Right → Left (Optional)
Conveyor Height (mm)	900 ± 30
Power Supply	AC 220V / 50–60Hz
Control System	Siemens PLC + KinSeal Touch Screen
Standard Interface	Online Connection (SMEMA)
Weight (Kg)	Approx. 100	Approx. 150	Approx. 180	Approx. 200
Carriage Quantity	1 or 2 (Optional)
Track Switching	Automatic (Optional)

Key Features

◆ Ultra long travel: Customized body length of 1.3-5 meters, optional 1-2 small cars.

◆ Silent translation: Modular Y-axis drive, smooth and low-noise operation.

◆ Siemens PLC+touch screen: Fast computation, anti-interference, supports multi-parameter storage.

◆ SMEMA Online: Standard interface for fully automated unmanned collaboration.

◆ Automatic track changing: No manual intervention required for mixed production lines.

◆ Wide compatibility: Suitable for PCB sizes ranging from 50x50mm to 450x350mm.

Frequently Asked Questions

Q1: Can the track direction be customized?

Yes, the transfer direction can be set as Left to Right or Right to Left based on your line layout.

Q2: Does it support SMEMA standards?

Yes, the machine comes with a standard SMEMA interface for seamless integration into automated lines.

Q3: Is the track switching automatic?

Automatic track switching is available as an optional feature to improve efficiency.

Q4: What is the maximum PCB size supported?

The machine supports PCB sizes up to 450mm x 350mm.

Q5: What control system does it use?

It utilizes a reliable Siemens PLC paired with a KinSeal touch screen for precise control.
