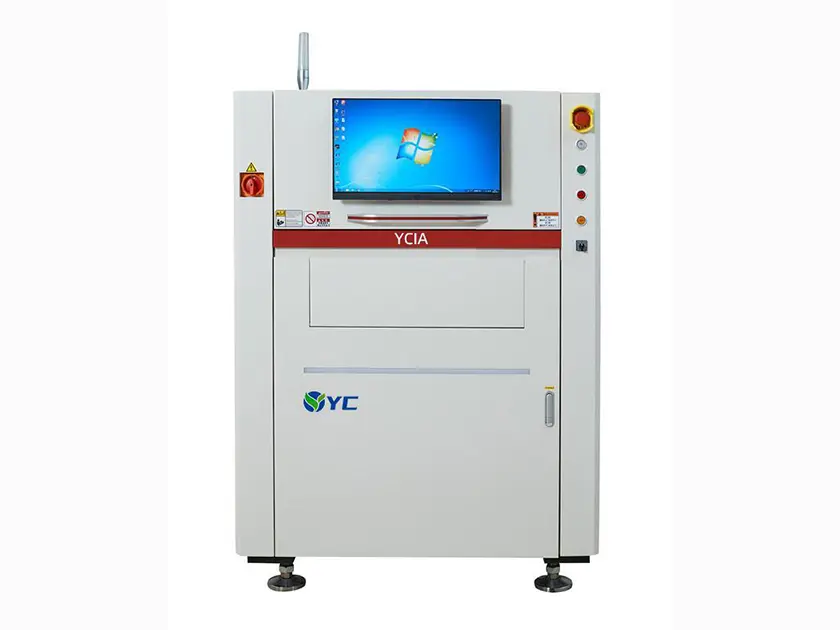

| Category | Parameter | Details |
|---|---|---|
| Inspection System | Camera Resolution | 5 Mega Pixels |
| Inspection System | Lighting | Surrounding RGB Light Source |
| Inspection System | Max Inspection Height | 450μm |
| Software | Operating System | Windows 10 Ultimate 64bit |
| Software | Programming | Gerber/CAD Import, Offline & Manual |
| Mechanical | PCB Size | Min: 50x50mm | Max: 510x700mm |

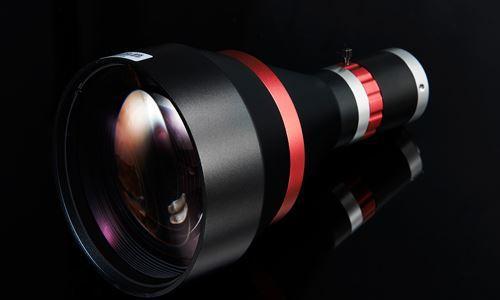

Features an industrial CCD camera with ultra-low distortion and unique parallel light design for clear imaging of tall components.
Utilizes a five-step phase-shifting algorithm to ensure shadow-free detection with 1μm accuracy.

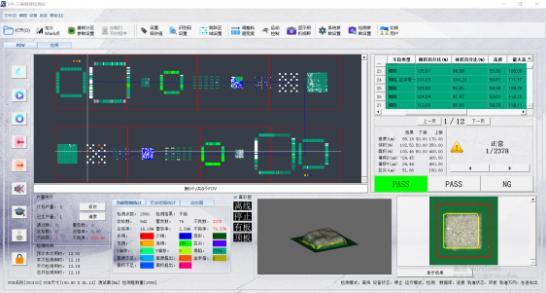

Provides real-time measurement and compensation for PCB warpage to maintain high precision measurement data.
