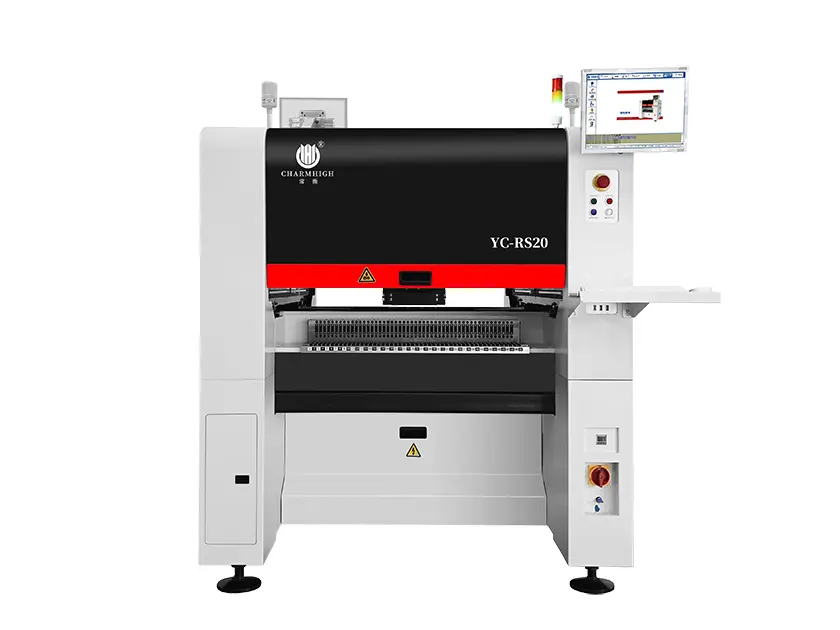

Effective Reduction in Component Discard
Our advanced mounting solution is compatible with NXT feeders, delivering exceptional feeding accuracy of ±0.03mm. Equipped with a high-performance vacuum pump and solenoid valve mechanism, it ensures minimal component waste, making it the ideal choice for manufacturers in China seeking reliable Suppliers and Factory solutions.

Program Enhancements
Experience seamless operations with automatic pick-up position calibration. Our system supports offline programming and includes pre-configured mounting parameters in the standard component library, streamlining the manufacturing process for Suppliers and Factories in China.

Improved Mounting Quality and Stability
Achieve superior quality with CPK values of CPK≥1.0 and positioning accuracy of (xy) ±0.033mm. The system features automatic identification of chip pin dimensions and an integrated gantry-style cast iron platform, complemented by automatic thermal compensation correction for optimal performance in China-based Suppliers and Factories.

Significant Boost in Production Efficiency
Our dual-arm combined mounting system can reach 82,000 CPH under optimal conditions, significantly enhancing production efficiency. The dual-track conveyance allows for the simultaneous production of two PCBs, making it a crucial asset for Suppliers and Factories looking to maximize output in China.

Send Inquiry

Product Description

Technical Specification

Dimensions	1400mm(L) × 1890mm(W) × 1550mm(H)
Weight	2500kg
Power Supply	AC380V(50Hz, three phase), 5kw
Vacuum Generation	Built-in dual vacuum pumps
Mounting Speed	Optimal Speed 82000CPH
Mounting Accuracy	(xy)±0.035mm CPK≥1.0
Component Range	01005 to 15mm × 15mm
PCB Size	Single Lane: 520mm×450mm; Dual Lane: 520mm×250mm

High-End Configuration

Advanced engineering for optimal process capability.

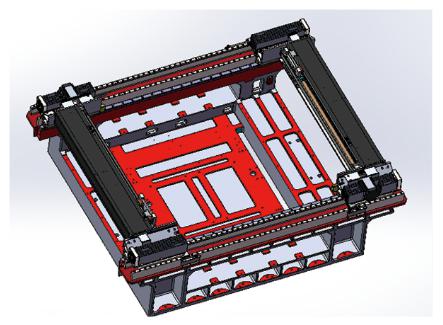

Y-Axis Dual Linear Motor

Advanced motor structure for low noise and vibration at high speeds.

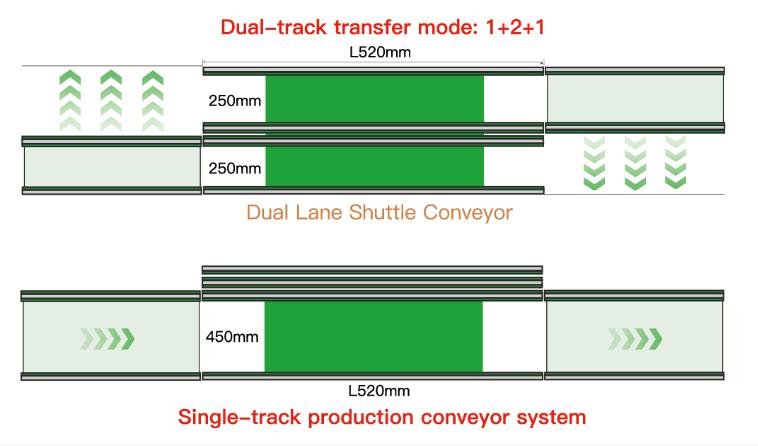

Dual-Track Transfer

Versatile PCB support for single and dual lane production.

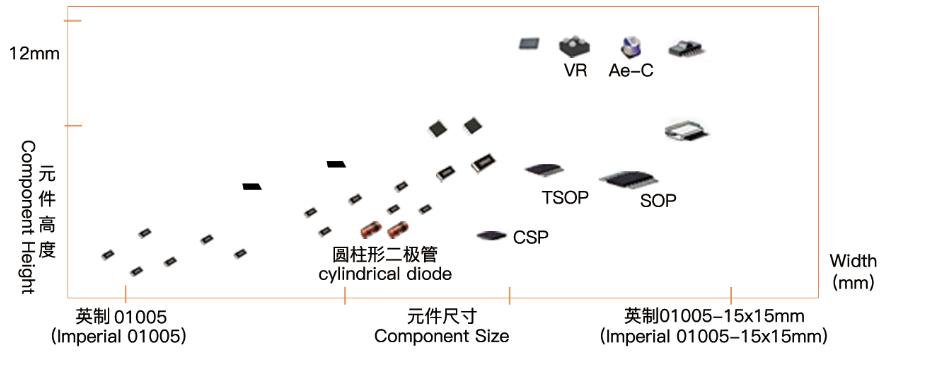

General Purpose Mounting

High-precision placement for components up to 15mm × 15mm.

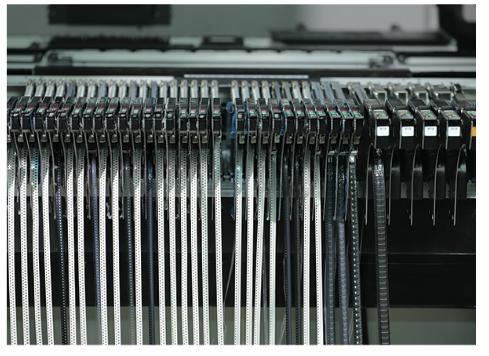

100 Feeder Stacks

Supports 100 NXT 8mm feeders with automatic calibration.

Frequently Asked Questions (FAQ)

What is the optimal mounting speed?

The machine reaches speeds up to 82,000 CPH under ideal conditions.

What component sizes are supported?

It handles components from 01005 micro-chips up to 15mm × 15mm.

Does it support dual-track PCB conveying?

Yes, the system supports both single and dual lane substrate transfer.

How many feeders can be installed?

The machine accommodates up to 100 NXT 8mm standard feeder stacks.

Is the nozzle change automated?

Yes, it features a fully automatic 31-hole nozzle change system per gantry.
