| Parameter | Details |
|---|---|
| Maximum Board Size | 450mm×350mm |
| PCB Thickness | 0.4mm ~ 6mm |
| Printing Speed | 0 ~ 200 mm/s |
| Printing Repeatability | ±20.0 micron, Cp≥2.0 |
| Power Requirements | AC220V±10%, 50/60HZ, 15A |
| Machine Weight | About 1000Kg |

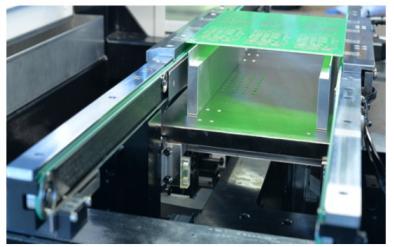

Adaptive to varying PCB thicknesses, utilizing software-adjustable elastic side clamping and magnetic support mechanisms for high-precision placement.

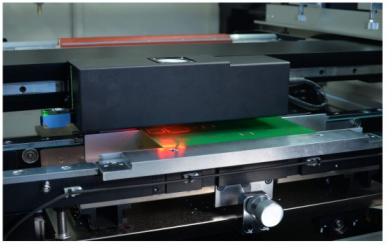

Equipped with four adjustable light sources to ensure uniform illumination. Reliably identifies marks on various PCB materials including gold-plated, copper-plated, and FPC surfaces.

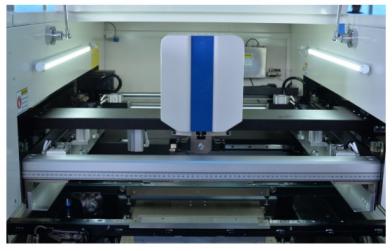

Features direct-drive motor-powered blades with programmable settings and a built-in precision pressure control system for consistent printing quality.
Q: What is the maximum printing area?
A: The maximum printing area is 450mm × 350mm.
Q: Does this machine support different PCB materials?
A: Yes, it is compatible with tin-plated, copper-plated, gold-plated, and FPC boards.
Q: What is the printing repeatability accuracy?
A: The printing repeatability is ±20.0 microns with a Cp value ≥ 2.0.
Q: Is the machine's software adjustable?
A: Yes, it features software-adjustable lateral pressure and printing parameters.
Q: What are the power requirements for operation?
A: The machine requires AC220V±10%, 50/60HZ, 15A power supply.
Q: What is the cycle time for this equipment?
A: The equipment achieves a cycle time of less than 7 seconds.
