Cheap Efficient NG/OK PCB Unloader from China Suppliers - Reliable Factory Solution for SMT Line Automation and Quality Control Factory, Exporter
1 / 1

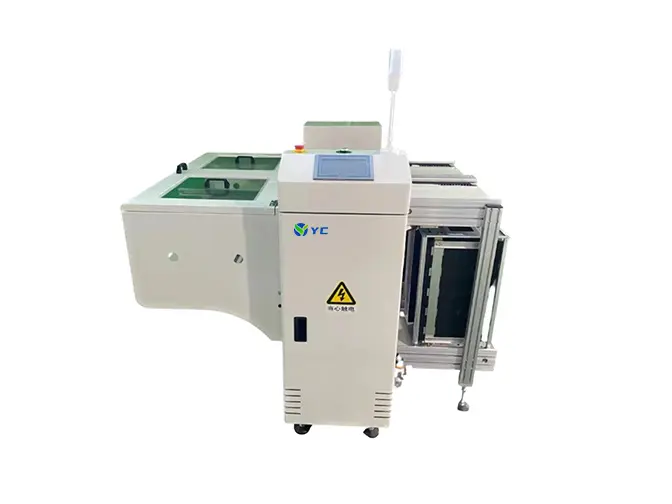

Cheap Efficient NG/OK PCB Unloader from China Suppliers - Reliable Factory Solution for SMT Line Automation and Quality Control Factory, Exporter

Cheap Efficient NG/OK PCB Unloader from China Suppliers - Reliable Factory Solution for SMT Line Automation and Quality Control Factory, Exporter

The NG/OK Unloader is a cutting-edge intelligent sorting device designed specifically for SMT production lines in China. This advanced technology automatically categorizes PCBs into OK and NG classifications, ensuring precise quality assessments that prevent material mixing. As a key solution for suppliers and factories, it enhances downstream processing and boosts automation, significantly improving final inspection efficiency. With the NG/OK Unloader, manufacturers can guarantee reliable product quality while streamlining their operations
Send Inquiry

Product Description

Specification

SpecificationYC-250ULSYC-330ULSYC-390ULSYC-460ULS
Overall Dimension (mm)1650×1400×13502050×1600×13502200×1900×13502200×2100×1350
PCB Passing Dimension (mm)80×80 ~ 330×25080×80 ~ 450×33080×80 ~ 530×39080×80 ~ 530×460
Magazine Dimension (mm)355×320×563460×400×563535×460×570535×530×570
Conveying DirectionLeft → Right / Right → Left (Optional)
Conveying Height (mm)900 ± 30900 ± 30900 ± 30900 ± 30
Power SupplyAC 220V / 50-60Hz
Control SystemYiDe PLC + Xinje HMI
Weight (Kg)Approx. 150Approx. 200Approx. 250Approx. 300
PCB Storage CapacityNG: 50 pcs, OK: 50 pcs
Conveying SpeedApprox. 6 – 10 s/pcs

Features

⚙️
Intelligent Interaction
Integrated touch screen and intuitive operation for improved safety and efficiency.
🛡️
Sturdy Cabinet
High-strength load-bearing structure, compact and reliable for continuous production.
🚥
Three Color Warning Lights
Real-time status display for easy on-site management.
⚡
Strong Power
220W high-performance motor ensures smooth production rhythm.
🔄
Automatic Sorting
AOI signal integration to classify good and defective products automatically.
📏
Flexible Installation
Adjustable support feet to adapt to various workshop environments.

Frequently Asked Questions (FAQ)

What models are available?
We offer four models: YC-250ULS, YC-330ULS, YC-390ULS, and YC-460ULS.
How does automatic sorting work?
It receives signals from AOI systems to divert OK and NG boards automatically.
What is the storage capacity?
The unit holds up to 50 NG boards and 50 OK boards.
What are the power requirements?
The machine operates on a standard AC 220V / 50-60Hz power supply.
Is the conveying direction adjustable?
Yes, Left-to-Right is standard, with Right-to-Left available as an option.
How fast is the conveying speed?
The system processes boards efficiently in approximately 6 to 10 seconds per piece.
