The 300 wave soldering machine, manufactured in China, is designed for PCB widths ranging from 50 to 300mm, making it the perfect choice for small to medium-sized production lines. This machine features a compact modular structure that facilitates easy maintenance and allows for flexible configuration to meet diverse operational needs. With independent PID temperature control, it ensures precise and stable heating performance across all zones, which results in reliable and consistent soldering quality. Our optimized design not only enhances energy efficiency and solder utilization but also positions us as leading suppliers in the industry. Furthermore, we offer responsive after-sales service to ensure stable, long-term operation, making our factory a trusted partner for your manufacturing needs

Product Description

Specification

ModelYC-H300AF
Dimensions (L×W×H)4300x1250x1650mm
WeightApprox. 1300 kg
Solder Pot CapacityLead-free 300 kg
Power Supply380V, 50/60Hz, 3-Phase 5-Wire
Control SystemPC + PLC
Preheating Zone3
Preheating Length1700 mm
Preheating TemperatureRoom Temperature – 250°C
PCB Width50 – 300 mm

Features

Solder Pot

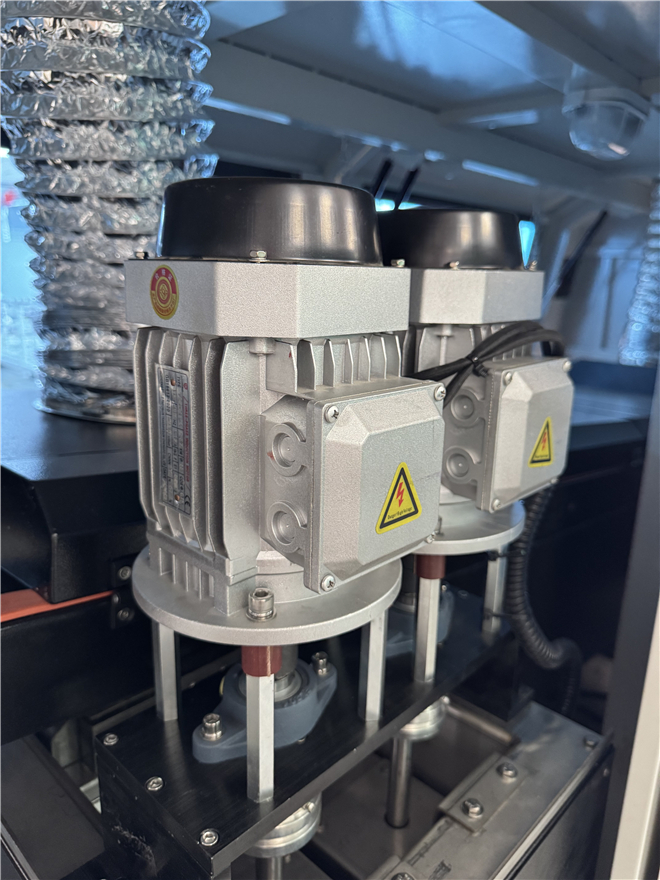

The solder pot is constructed with a titanium alloy inner liner and nozzle, providing excellent corrosion resistance and long service life. Optimized wave structure design reduces tin slag oxidation. High-temperature resistant drive motors ensure stable and smooth wave peaks.

Reliable Flux Spray System

Equipped with high-precision spray nozzles, the flux system offers adjustable spray width and atomized spray for uniform coating, improving soldering reliability and reducing waste.

Details

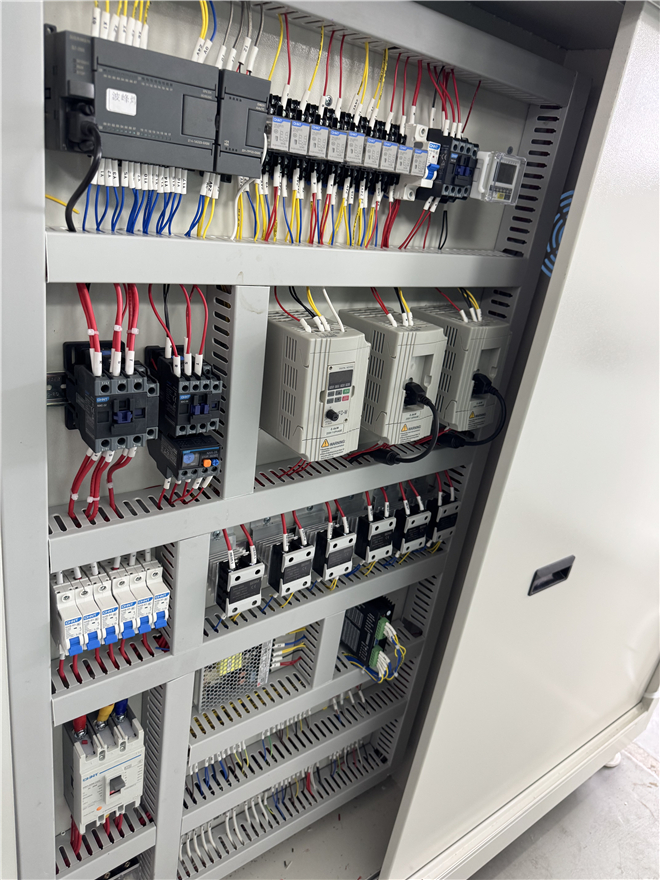

Electrical Cabinet
Electrical Cabinet

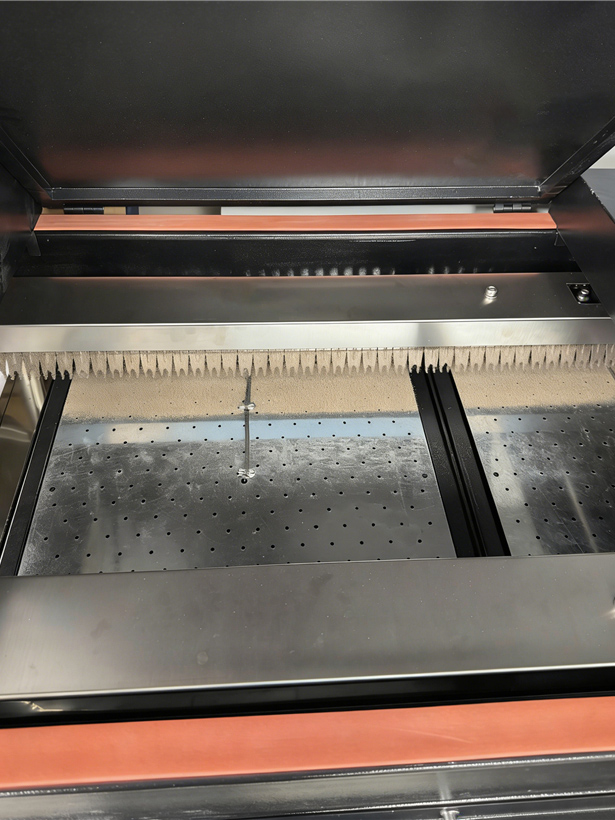

Preheating Zone

FAQ

What is the solder pot capacity?
The YC-H300AF model features a lead-free solder pot capacity of approximately 300 kg.
What is the compatible PCB width?
The transportation system accommodates PCB widths ranging from 50 mm to 300 mm.
How does the flux spray system work?
It utilizes high-precision nozzles with an adjustable spray width of 20–55mm for uniform coating.
What are the power requirements?
Requires 380V, 50/60Hz, 3-Phase 5-Wire power. Startup power is ~18 kW; operation is ~7 kW.
Is the preheating temperature adjustable?
Yes, it uses multi-zone independent PID control from room temperature up to 250°C.
