Introducing our advanced 10-zone hot air reflow oven, designed specifically for SMT production lines that demand superior soldering quality. This state-of-the-art oven, produced in China, is ideal for manufacturers looking for reliability and efficiency. With its extended heating zones, it ensures precise and stable temperature profiling, essential for complex PCB assemblies and lead-free soldering processes. The innovative micro-circulation hot air convection system enhances thermal uniformity and stability, making it a top choice among suppliers in the electronics manufacturing sector. Experience stable operation, easy control, and energy-efficient performance, perfect for mid- to high-end electronics factories. Optimize your production with our leading technology today!

Product Description

Specification

ItemSpecification
ModelYC-H10>00AF
Dimensions (L×W×H)6150×1350×1550mm
WeightApprox. 2050kg
Heating Zones10 Zones
Cooling Zones3 Zones
Power Supply380V, 50/60Hz, 3-Phase 5-Wire
Total Power56Kw

Core Features

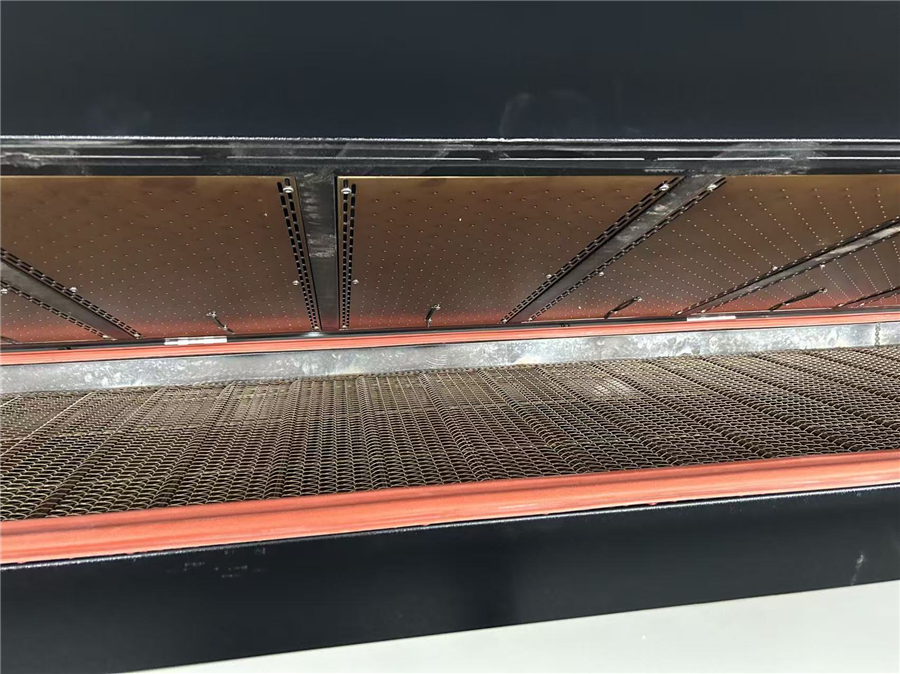

  • Independent top and bottom hot air circulation system
  • Extended heating zones for finer temperature profiling

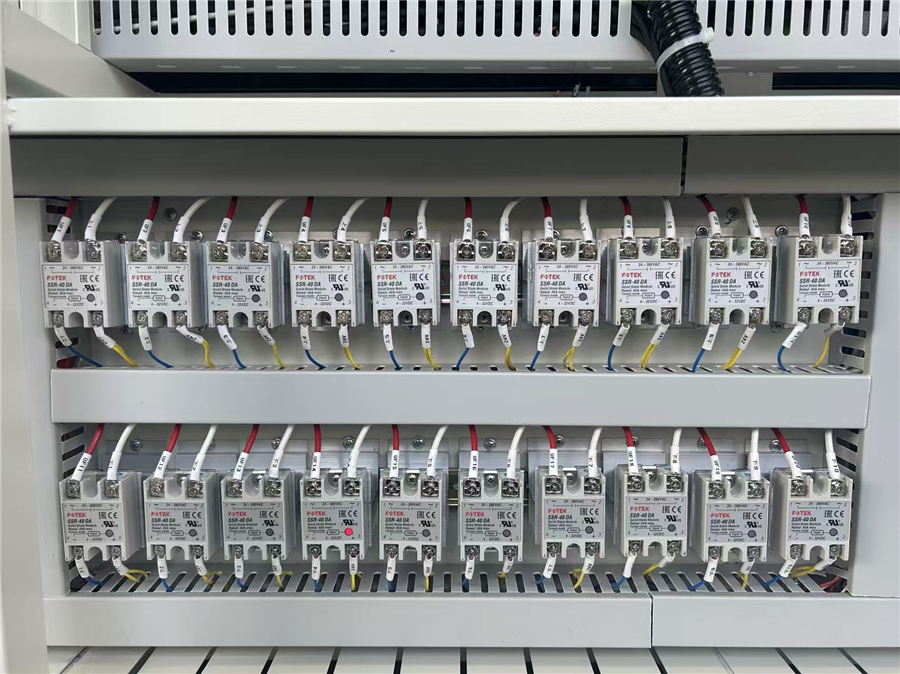

  • PID + SSR high-precision temperature control
  • Stable conveyor structure for reliable transport

Smart Control System

  • Windows 7 / Windows 10 industrial operating platform
  • Chinese & English bilingual interface
  • Siemens PLC or intelligent patented control system
  • Automatic alarms for system faults

Optional Configurations

Full Nitrogen Reflow System

Low-oxygen environment for high-reliability soldering.

Rail Chain Conveyor System

Stable transport for heavy PCB assemblies.

External Chiller

Enhanced cooling performance.

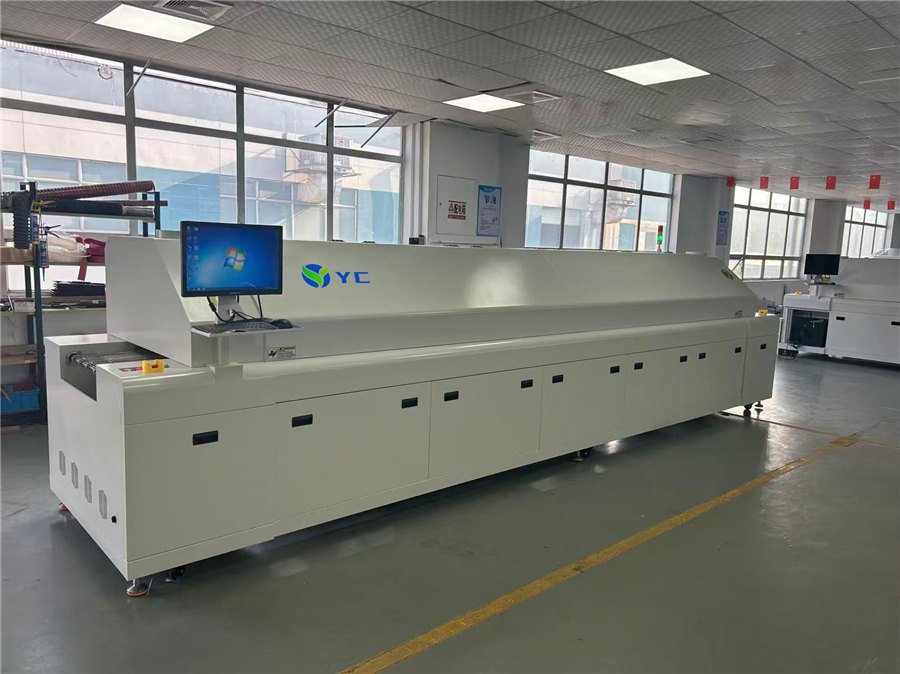

Product Gallery

FAQ

What are the machine dimensions?

The dimensions are 6150×1350×1550mm.

How many heating zones?

It features 10 heating zones with top and bottom heating.

Is nitrogen atmosphere available?

Yes, a Full Nitrogen Reflow System is available as an option.

What is the power consumption?

The normal power consumption is approximately 13 kW.

Can conveyor width be customized?

Yes, custom machine length and conveyor width are available.

What operating system is used?

It uses a Windows 7 / Windows 10 industrial platform.
