| Item | Specification |
|---|---|
| Model | YC-350TO |

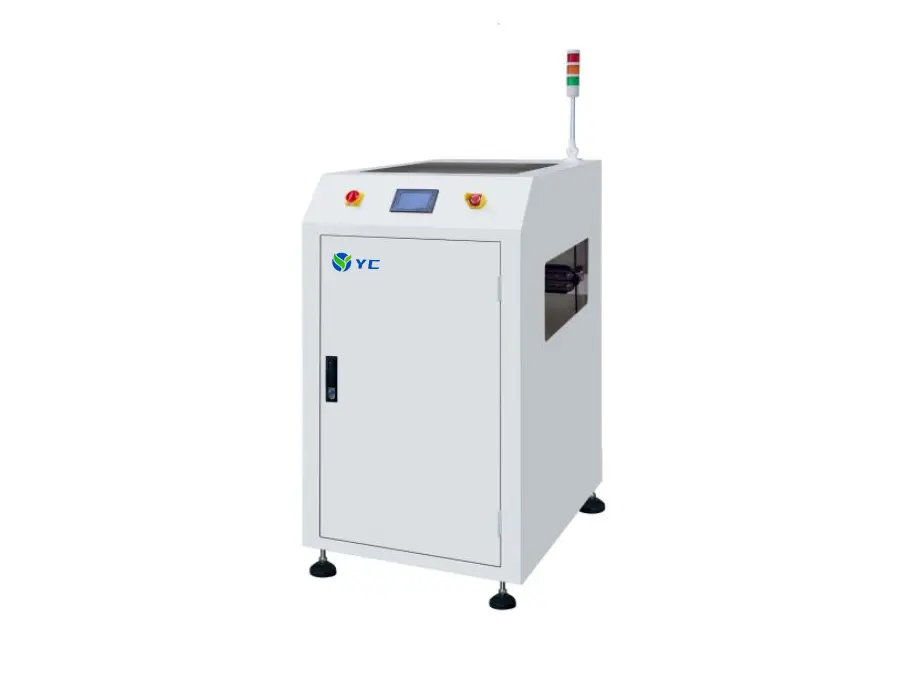

| Machine Type | Automatic SMT PCB Flipper |
| Overall Dimensions | 580 × 850 × 1450 mm |
| PCB Size Range | 60 × 60 mm ~ 450 × 350 mm |
| Cycle Time | Approx. 10–15 sec/PCB |
| Transfer Direction | Left → Right or Right → Left |
| Conveyor Height | 900 ± 30 mm |
| Power Supply | AC 220V / 50–60Hz |
| Control System | Siemens PLC + KinSeal Touch Screen |
| Air Pressure | 0.4 – 0.6 MPa |
The cycle time is approximately 10 to 15 seconds per PCB.
It handles PCB sizes from 60 × 60 mm up to 450 × 350 mm, with adjustable width settings.
It utilizes a Siemens PLC combined with a KinSeal Touch Screen for stable operation.
A specialized clamping device with a cylinder or electromagnet holds the PCB edge securely.
Yes, the standard is Left to Right, with Right to Left available as an option.
Includes a protective cover and a three-color warning light for real-time status feedback.
