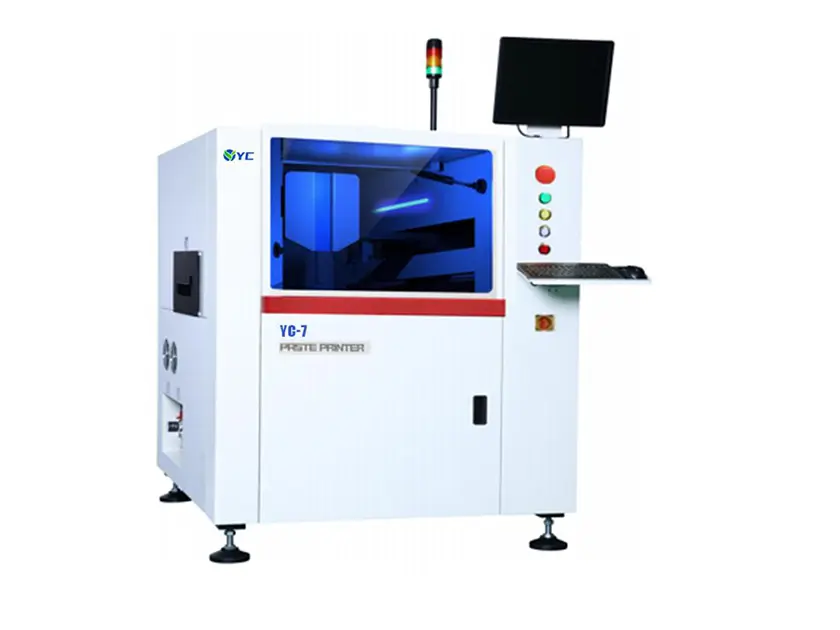

PCB Parameters | |
| Maximum board size (X x Y) | 450mm x 350mm |
| Minimum board size (X x Y) | 50mm x 50mm |
| PCB thickness | 0.4mm ~ 6mm |
| Transfer speed | 1500mm/s (Max) |
Printing Parameters | |
| Printing head | Floating intelligent printing head |
| Printing area (X x Y) | 450mm x 350mm |
| Printing speed | 0 ~ 200 mm/s |
| Printing pressure | 0.5kg - 10Kg |
Cleaning Parameters | |
| Cleaning mode | Spurt out, Dry, Wet, and Vacuum |
Image Parameters | |
| Camera system | Independent upwards/downwards vision |
Performance Parameters | |
| Repeat position accuracy | ±12.5μm @6 σ, Cpk ≥ 2.0 |
| Cycle time | < 8s (Exclude printing/cleaning) |
The equipment handles PCB sizes from 50mm x 50mm up to 450mm x 350mm, with thickness ranging from 0.4mm to 6mm.
The system supports both Steel and Glue squeegees with customizable angles of 45°, 50°, and 60° to suit specific processes.
The machine delivers high precision with a repeat position accuracy of ±12.5μm at 6 sigma and a Cpk value greater than or equal to 2.0.
Yes, it features a comprehensive cleaning system that supports dry, wet, and vacuum cleaning modes.
The machine operates on AC220V±10% at 50/60Hz, 15A, and requires a compressed air supply of 4~6Kg/cm².
It offers high efficiency with a cycle time of under 8 seconds and a rapid product changeover time of less than 5 minutes.
