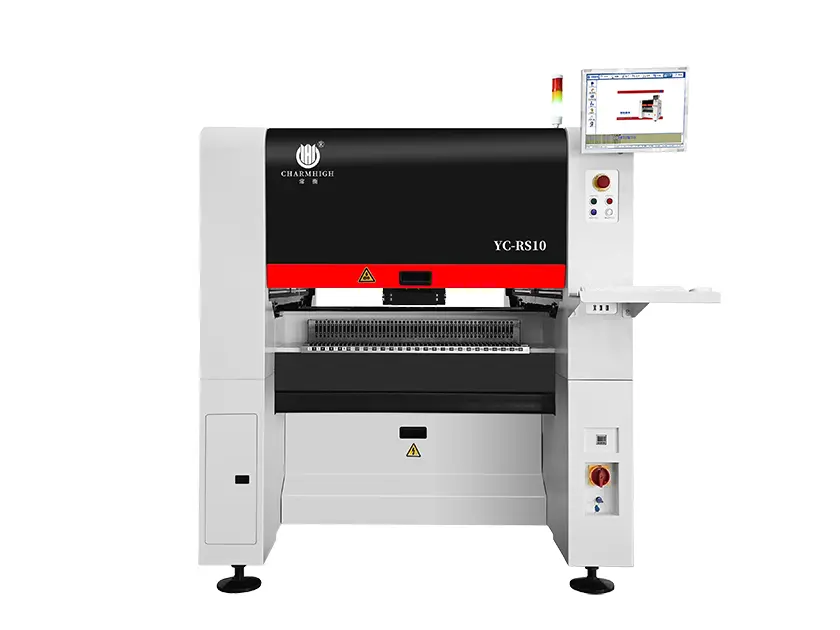

| Dimensions | 1400mm(L) × 1890mm(W) × 1550mm(H) |
| Weight | 2315kg |
| Power Supply | AC380V(50Hz, three phase), 3.5kw |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 10 Head |
| Mounting Speed | Optimal Speed 45000CPH |
| Mounting Accuracy | (xy)±0.033mm CPK≥1.0 |
| Component Height | ≤12mm |
| Component Type | Resistor capacitor exclusion, cylindrical diode, aluminum capacitor, SOT, SOP, QFP, QFN, BGA, etc. |
| Component Range | Inch size 01005 to 36mm*36mm, and larger components mounting. |
| PCB Thickness | 0.6mm～3.5mm |
| PCB Size | 520mm(L)×520mm(W) (standard); 1000mm(L)×520mm(W) (optional). |
| PCB Conveying | 3-section-rail automatic conveying, PCB support |
| Nozzle Change | Automatic nozzle change (31-hole nozzle library) |
| Control System | Built-in industrial computer (Windows7) equipped with monitor, keyboard and mouse |
| Drive System | X-axis is driven by servo motor (Y-axis is driven by dual linear motor) |
| Transmission System | Adopting linear motor + grating ruler |
| Feeding System | 100 NXT 8mm standard feeder stacks |
| Vision System | Fly camera×10, IC camera×1, Mark camera×2 |
Q: What is the optimal mounting speed of the machine?
A: The optimal mounting speed is 45000CPH.
Q: What PCB sizes and thicknesses are supported?
A: The standard PCB size is 520mm×520mm, with an optional 1000mm×520mm. It supports thicknesses from 0.6mm to 3.5mm.

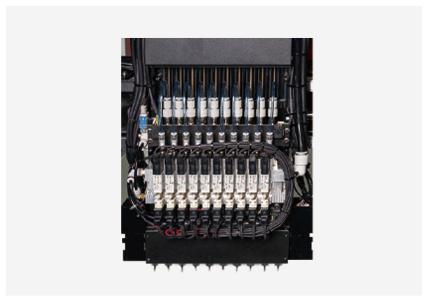

Q: How many mounting heads does the system feature?
A: The machine is equipped with 10 high-precision universal mounting heads.
Q: What types of components can be mounted?
A: It handles various components from 01005 to 36mm*36mm, including SOT, SOP, QFP, QFN, and BGA.

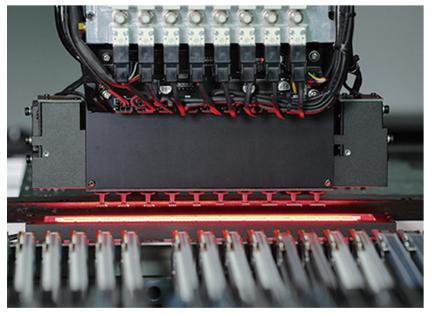

Q: What does the vision system consist of?
A: It includes 10 fly cameras, 1 IC camera, and 2 Mark cameras for precise alignment and recognition.

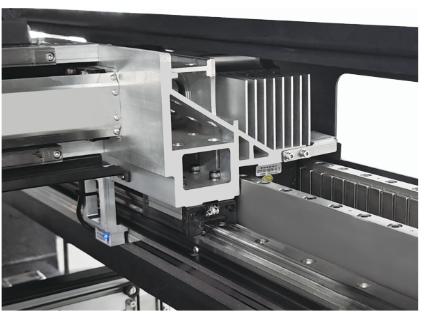

Q: What drive system is used for the axes?
A: The X-axis uses a servo motor, while the Y-axis utilizes a high-performance dual linear motor drive.
