Core Features
• Independent top and bottom heating circulation for optimal performance
• Advanced PID + SSR precision temperature control ensuring accuracy
• Stable conveyor transport system for efficient operation
• Intelligent control with comprehensive data recording capabilities
• Energy-saving design that simplifies maintenance
Discover why leading China suppliers choose our state-of-the-art factory solutions to enhance their production lines.

,
Send Inquiry

Product Description

Specification

Item Specification
Model YC-H800AF
Dimensions (L×W×H) 5350 × 1350 × 1550 mm
Weight Approx. 1800 kg
Heating Zones Length Approx. 3200 mm
Heating Zones 8 Zones (Top & Bottom Heating)
Cooling Zones 2 or 3 Zones
Power Supply 380V, 50/60Hz, 3-Phase 5-Wire
Total Power 48 kW
Normal Power Consumption Approx. 13 kW

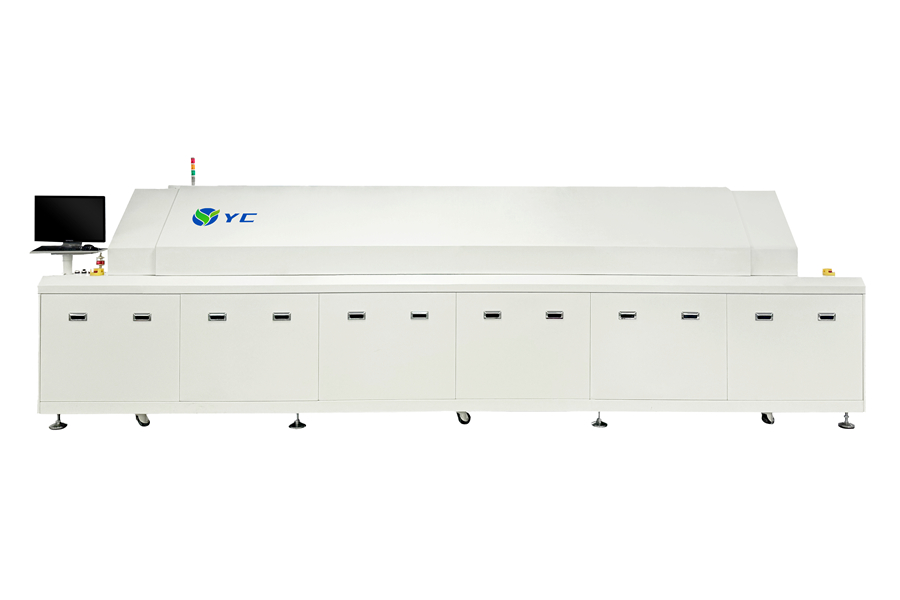

Smart Control System

8-Zone Reflow Oven Smart Control System
Windows 7 / Windows 10 industrial operating platform with stable performance
Chinese & English bilingual interface with clear and intuitive operation screens
Siemens PLC or intelligent patented control system available as an option
Supports multiple recipe storage and temperature profile recording for different PCB products
Real-time monitoring of temperature status and machine operation conditions
Built-in abnormal alarms for temperature deviation, communication errors, and hardware faults

Optional Configurations

Full Nitrogen Reflow System Provides a low-oxygen soldering environment to improve solder joint quality, reduce oxidation, and enhance process stability for high-reliability PCB assemblies.
Rail Chain Conveyor System Heavy-duty conveyor structure designed for stable transportation of larger or heavier PCBs, improving production reliability and long-term durability.
External Chiller Supports connection with an external cooling unit to enhance cooling efficiency and maintain stable operating temperatures in high-volume production environments.
Customized Machine Length & Conveyor Width Flexible customization options available to meet specific production requirements, PCB sizes, and factory layout conditions.
Optional Configurations Reflow Oven

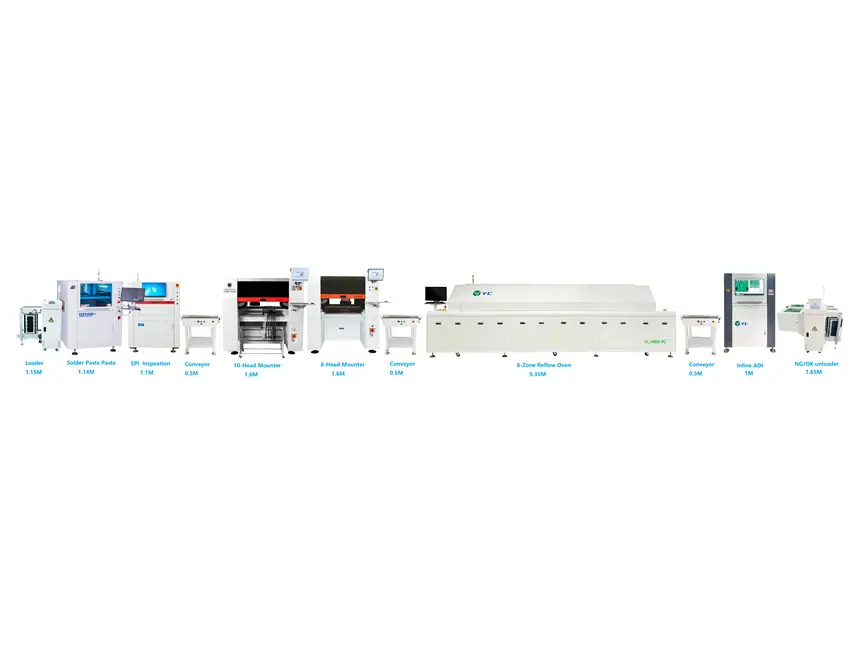

Recommended SMT Line Configuration

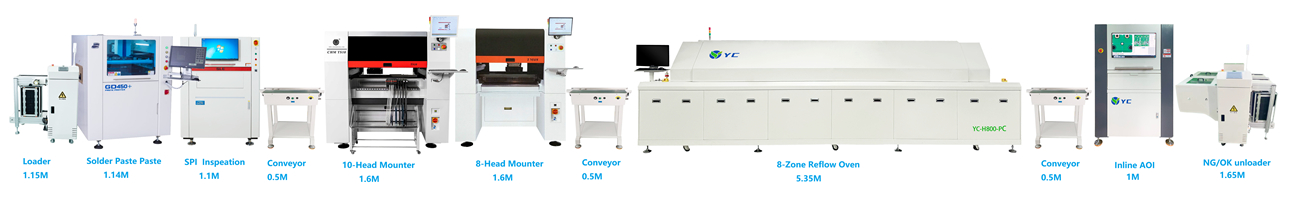

8-Zone Temperature Control with Full Line Configuration
Product Name Purpose in SMT Line
Loader Automatically loads PCBs onto the production line
Solder Paste Printer Prints solder paste onto PCB pads accurately
SPI Inspection Inspects solder paste quality after printing
Conveyor Transfers PCBs between different processes
10-Head Mounter High-speed placement of electronic components
8-Head Mounter Flexible and precise component placement
Conveyor Connects machines and buffers PCB transfer
8-Zone Reflow Oven Solders components through controlled heating
Conveyor Transfers PCBs to inspection process
Inline AOI Detects soldering and placement defects automatically
NG/OK Unloader Sorts and unloads qualified and defective PCBs

Detail Picture

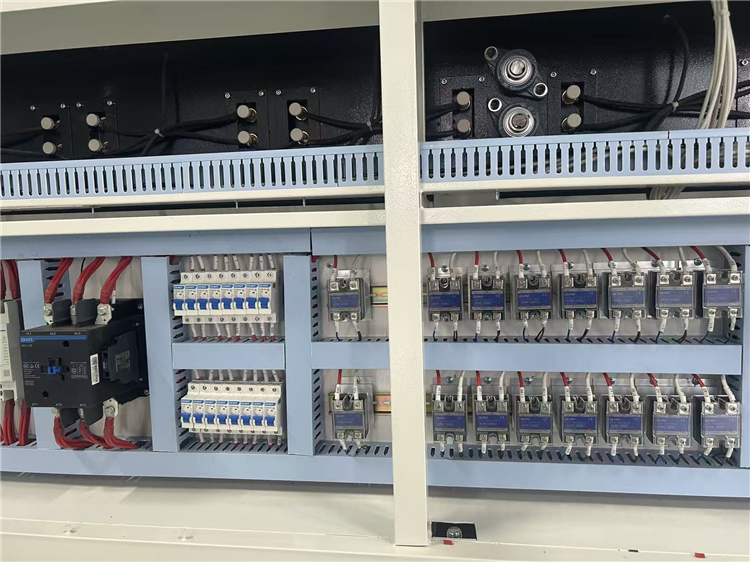

Electrical Cabinet Detail Picture
Electrical Cabinet

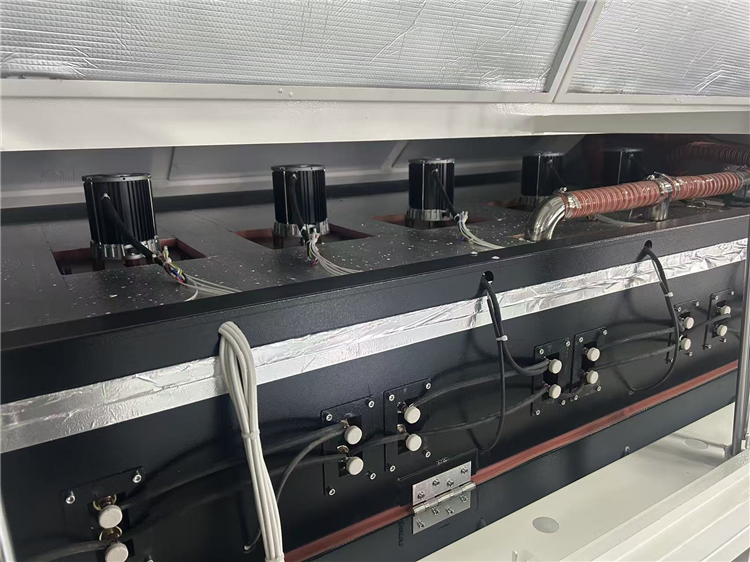

Motorised Inner Chamber Detail Picture
Motorised Inner Chamber

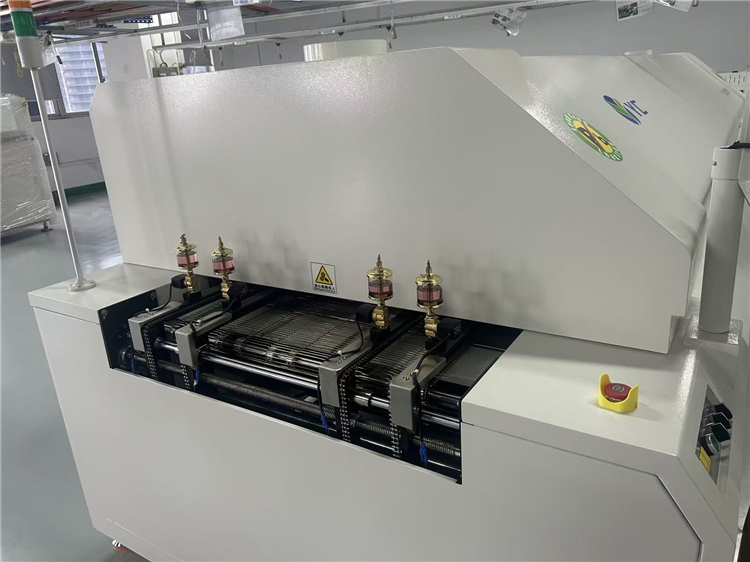

Dual-Track Detail Picture
Dual-Track

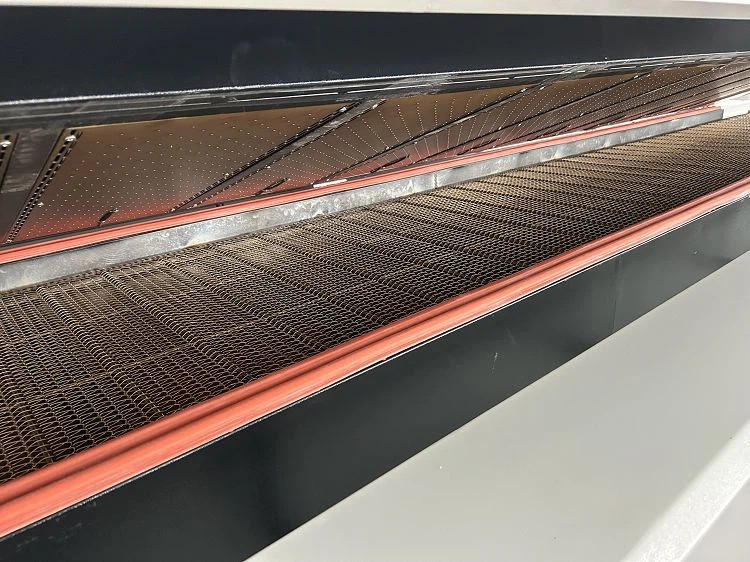

Mesh Belt Conveyor Detail Picture
Mesh Belt Conveyor

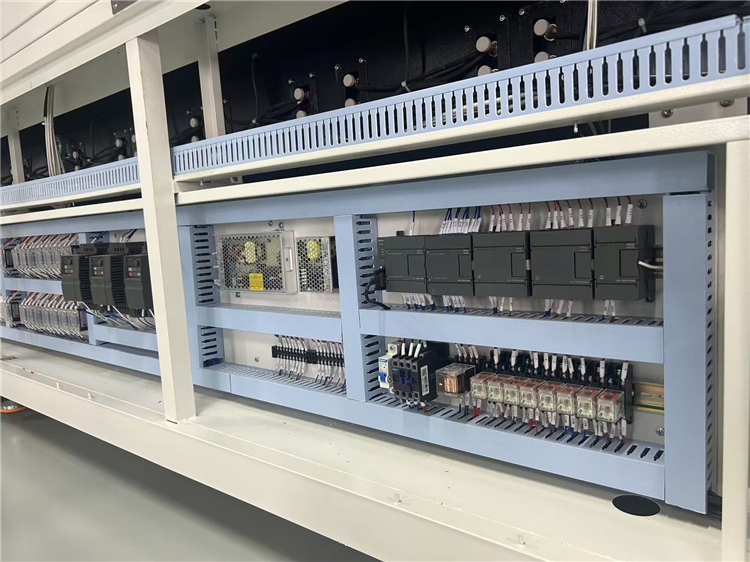

Siemens Control System Detail Picture
Siemens Control System

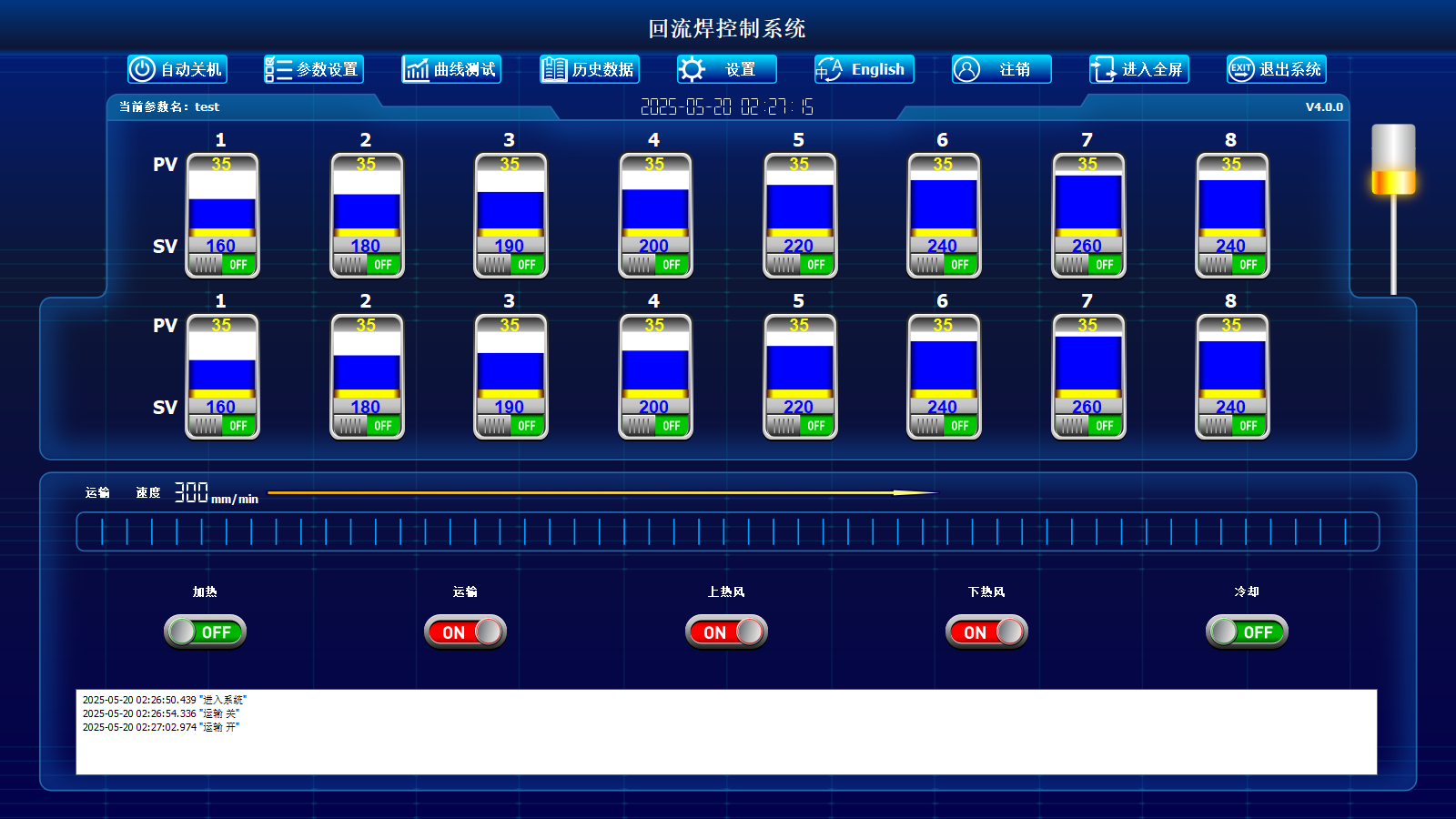

8-Zone Reflow Soldering Software

8-Zone Reflow Soldering Software Interface

Frequently Asked Questions (FAQ)

What is the power requirement for the YC-H800AF Reflow Oven?
The oven requires a 380V, 50/60Hz, 3-Phase 5-Wire power supply. The total power capacity is 48 kW, while the normal operating power consumption is approximately 13 kW.
How many heating and cooling zones does this machine feature?
The YC-H800AF is equipped with 8 heating zones (both top and bottom heating) and offers 2 or 3 cooling zones to ensure precise temperature profiling and optimal soldering quality.
Can the machine store different temperature profiles for various PCBs?
Yes, the smart control system supports multiple recipe storage and temperature profile recording, making it highly efficient for facilities that manufacture a variety of PCB products.
What are the benefits of the optional Full Nitrogen Reflow System?
The Full Nitrogen System creates a low-oxygen soldering environment. This significantly improves solder joint quality, reduces oxidation, and enhances process stability, which is crucial for high-reliability PCB assemblies.
Does the machine have built-in safety and alarm features?
Absolutely. The smart control system includes built-in abnormal alarms for temperature deviation, communication errors, and hardware faults, ensuring safe operation and real-time monitoring.
Is it possible to customize the conveyor width or machine length?
Yes, flexible customization options are available. The machine length and conveyor width can be tailored to meet your specific production requirements, PCB sizes, and factory layout conditions.
