Highly Efficient Component Placement Solution
Designed for compatibility with NXT feeders, our innovative technology ensures impeccable feeding accuracy of ±0.03mm. The reliable vacuum pump and solenoid valve mechanism enhance operational effectiveness, reducing component discard rates significantly.

Advanced Programming Features
Experience streamlined operations with automatic pick-up position calibration and support for offline programming. Our pre-configured mounting parameters in the standard component library enable quick deployment, making it an ideal choice for China suppliers and factory setups aiming to optimize production processes.

Superior Mounting Quality and Stability
Achieve impressive mounting quality with a CPK of CPK≥1.0 and positional accuracy of (xy) ±0.033mm. Our system automatically identifies chip pin features and dimensions, ensuring precision in every placement. The integrated gantry-style cast iron platform coupled with automatic thermal compensation correction guarantees stability and enhanced performance.

Enhanced Production Efficiency
Boost your factory's output with dual-arm combined mounting capabilities, achieving up to 60,000 components per hour under optimal conditions. The dual-track conveyance system allows for the simultaneous production of two PCBs, maximizing efficiency for suppliers in China.

Send Inquiry

Product Description

Description

The RS12 high-speed module placement machine is a high-end precision manufacturing model, specifically designed for efficient and stable production on SMT production lines. Equipped with a high-precision universal placement head, along with a high-speed flying camera and dual mark cameras, the machine can automatically identify the number and characteristics of component leads. Through visual image algorithms, it achieves more precise and stable component placement.

Placement accuracy: (XY) ±0.035 mm, CPK ≥ 1.0. It reliably supports the placement of components ranging from 01005 to 15×15 mm.

Maximum placement efficiency: 60,000 CPH with dual-track conveyor design.

Advanced Systems: Equipped with CPK testing, ANC automatic nozzle replacement, automatic thermal compensation calibration, and vacuum sensing devices.

Additionally, the system is compatible with various feeding methods, including NXT motorized feeders, vibratory feeders, and IC trays. It adapts to different PCB specifications, making it an ideal choice for boosting production line capacity and reducing scrap rates.

Specification

Dimensions	950mm(L) × 1890mm(W) × 1500mm(H)
Weight	1450kg
Mounting Speed	60,000 CPH
Mounting Accuracy	(xy)±0.035mm CPK≥1.0
Component Range	01005 to 15mm(L)×15mm(W)
PCB Size	Single Lane 350x450mm; Dual Lane 350x250mm

High-end Configuration

Y-axis linear motor

Provides low noise and vibration for stable operation.

Double Gantry Mounting Head

High-speed dual-arm (6+6) for simultaneous mounting.

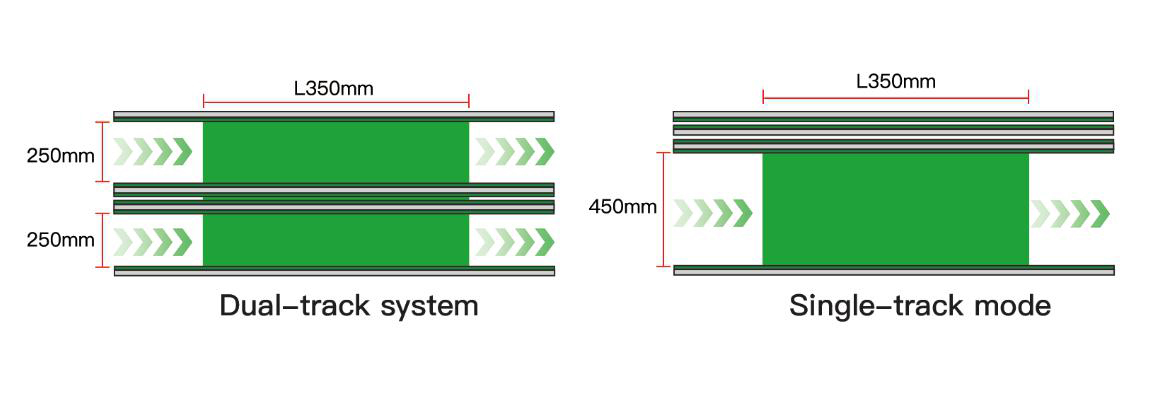

Dual-track Transfer

Supports flexible PCB size handling.

Dual Mark Cameras

Corrects PCB angles for precise coordinates.

Frequently Asked Questions

What is the mounting speed of the RS12?

The optimal mounting speed is 60,000 CPH.

What component sizes are supported?

It supports components from 01005 to 15x15mm.

Does it support dual-lane conveying?

Yes, it supports both monorail and dual-track three-stage conveying.

What types of feeders can be used?

It is compatible with NXT 8mm feeders, IC trays, and stick feeders.

How does the linear motor help?

It reduces noise and vibration during high-speed production.
