Introducing our 6-zone hot air reflow oven, specifically engineered for standard SMT production and small to medium batch manufacturing. This compact and efficient solution is perfect for those looking to enhance their production capabilities. Our optimized heating layout ensures stable temperature control and exceptional soldering performance, making it an ideal choice for manufacturers in China, Equipped with a balanced hot air convection system, this reflow oven guarantees consistent heat distribution, fulfilling the demands of conventional PCB assemblies and lead-free processes. As one of the leading suppliers in the industry, we prioritize ease of operation and energy efficiency, making it a smart investment for cost-effective and reliable SMT production in factories. Choose our 6-zone hot air reflow oven and elevate your manufacturing process today!

Product Description

📊 Specification

ItemSpecification
ModelYC-H600AF
Dimensions (L×W×H)4200×1250×1550mm
WeightApprox 1100kg
Heating Zones LengthApprox. 2350mm
Heating Zones6 zone (top and bottom)
Cooling Zones1 Zones
Power Supply380V, 50/60Hz, 3-Phase 5-Wire
Total Power38Kw
Normal Power ConsumptionApprox. 9Kw

⭐ Core Features

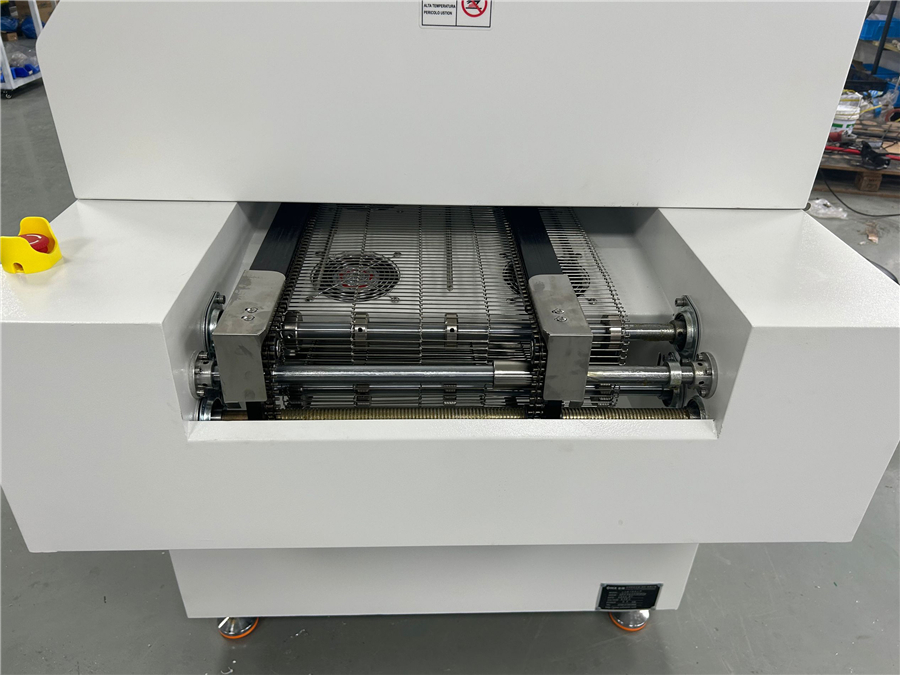

Reflow Oven Details
  • ✅ Compact 6-zone heating configuration for stable soldering.
  • ✅ Balanced upper and lower hot air flow.
  • ✅ Precision digital temperature regulation.
  • ✅ Durable conveyor mechanism.
  • ✅ Space-saving design with easy maintenance access.

🎛️ Control System

  • ✅ Integrated industrial control unit.
  • ✅ Clear and intuitive user interface.
  • ✅ PLC-based process management.
  • ✅ Multiple recipe storage capacity.
  • ✅ Real-time temperature monitoring and alarms.

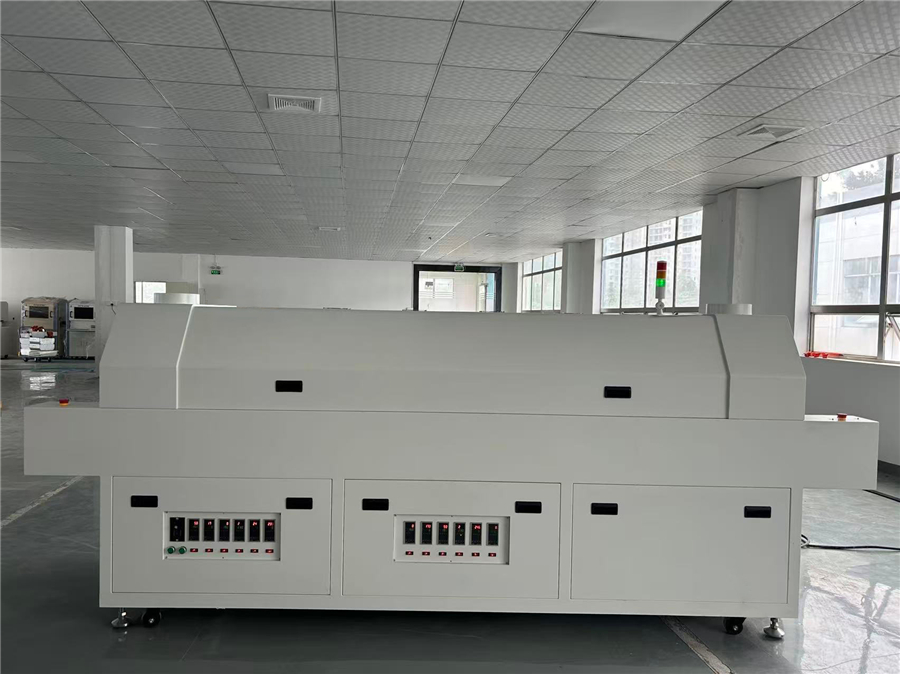

Control System

⚙️ Optional Configurations

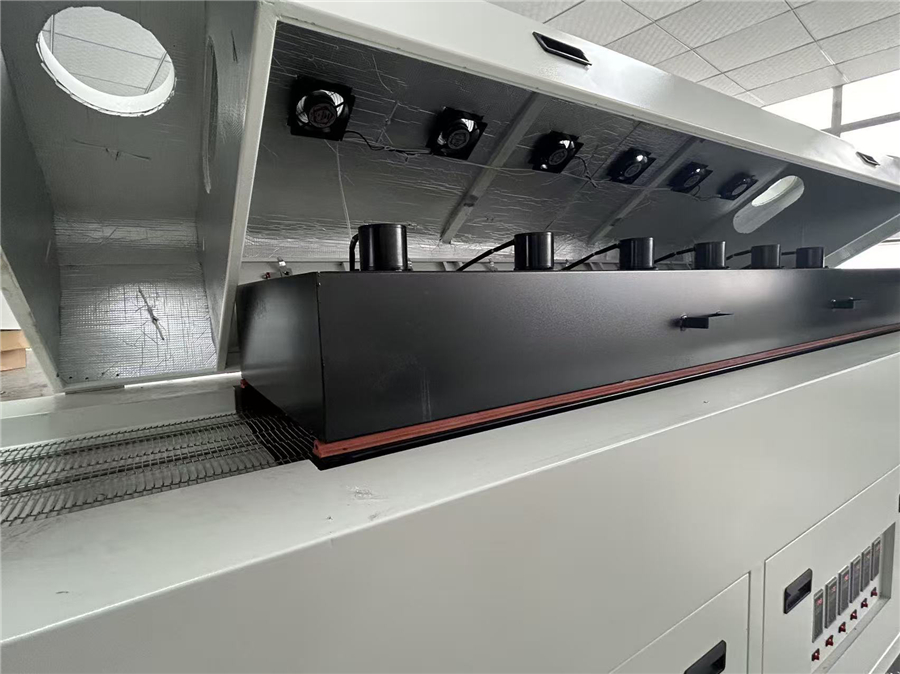

Optional Config
  • 📌 Instrument Control Panel: Cost-effective alternative.
  • 📌 Rail Conveyor System: Standard stable transmission.
  • 📌 Adjustable Width: Flexible for various PCB sizes.

🏭 SMT Line Configuration

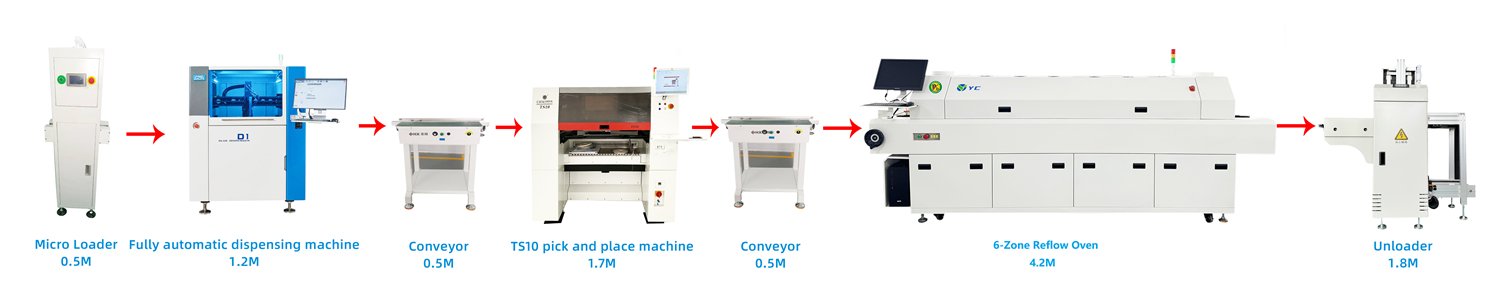

SMT Line

❓ Frequently Asked Questions

Q: What is the zone configuration?
It features a 6-zone heating configuration and 1 cooling zone.
Q: What is the power consumption?
The total power is 38Kw with an efficient normal consumption of 9Kw.
Q: Are there safety alarms?
Yes, built-in alarms monitor for temperature anomalies and system errors.
Q: Can it fit different PCB sizes?
Yes, with the optional adjustable conveyor width feature.
Q: What control systems are available?
We offer a standard PLC-based system or an optional Instrument Control Panel.
Q: Is the system stable?
Yes, it uses high-quality components to ensure consistent industrial performance.
