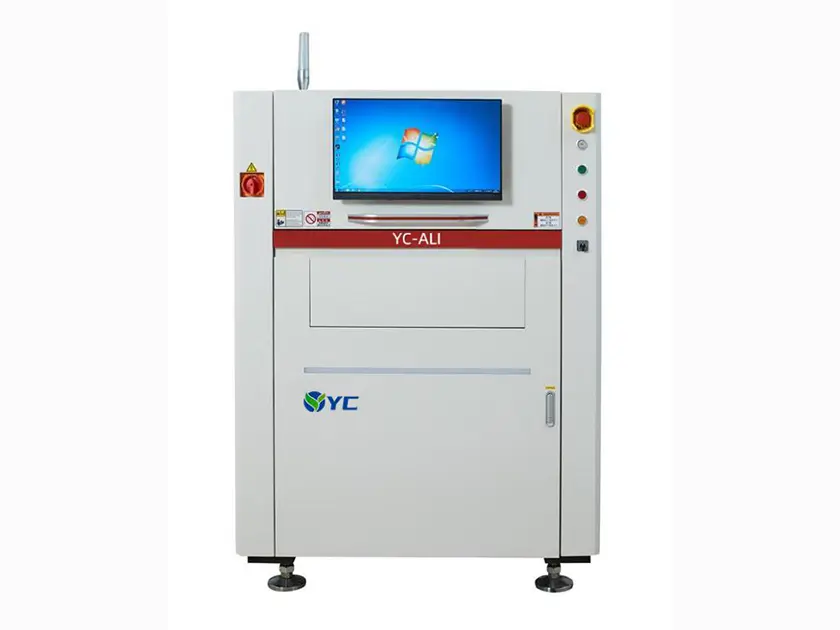

Famous China Suppliers Factory: YC-ALI 2D Automated Optical Inspection with AI Deep Learning and High Precision Factories, Exporter

,

Experience cutting-edge technology with our AI Deep Learning Algorithms, designed for high-performance and precision in automated programming. Our large format inspection system supports a maximum inspection area of 510 mm × 730 mm, making it ideal for various applications. Crafted with a high-precision frame platform made from monolithic cast marble, our equipment utilizes servo motors and high-precision ball screws to ensure exceptional stability and accuracy, As leading China suppliers in the industry, we guarantee that each unit has passed rigorous testing criteria established by the reputable third-party organization CTQ in Germany. Before shipment, our products undergo comprehensive quality checks to ensure optimal performance, making our factory the trusted choice for precision inspection solutions.

,

Product Description

YC-ALI Specification

Category Item YC-ALI
Appearance / ElectricalDimensions (L x W x H, mm)1090 * 1500 * 1534
Weight1150kg / 1200kg
Power Supply200-240VAC 50/60Hz
Power ConsumptionRated power: 1.8 kW
Air Supply0.4–0.7 MPa, 5 L/min
Mechanical / SystemsTrackFront-mounted, single-track
Operating SystemWindows 10 (Windows 11 optional)
PCBAPCB Dimensions (mm)50 × 50 to 510 × 730 mm, max thickness 6 mm
PCB Flow DirectionConfigurable (freely programmable)
Maximum Board ClearanceTop 50 mm, Bottom 50 mm
Maximum Board Warpage±4 mm
Visual SettingsCamera Specs
1200W: 12μm | FOV: 49*36mm | Speed: ~0.2-0.4S/FOV
1200W: 10μm | FOV: 41*30mm | Speed: ~0.2-0.4S/FOV
Main Lens10 μm, 12 μm (configurable)
Light SourceRGB ring + coaxial + low-angle white light
Smallest Component0201 (10 μm lens) / 0402 (12 μm lens)

Frequently Asked Questions

What are the physical dimensions and weight?
The system measures 1090 x 1500 x 1534 mm and weighs between 1150kg and 1200kg.
What are the utility requirements?
It requires 200-240VAC 50/60Hz power and 0.4–0.7 MPa air supply at 5 L/min.
What PCB sizes are supported?
The system supports PCB sizes from 50 x 50 mm up to 510 x 730 mm with a maximum thickness of 6 mm.
What is the minimum component size measurable?
The system can measure 0201 components with a 10 μm lens or 0402 components with a 12 μm lens.
What lighting options are integrated?
It features an integrated RGB ring light, coaxial light, and low-angle white light system.
Which optional upgrades are available?
Options include maintenance workstations, centralized inspection, SPC analysis, and automated line changeover systems.
