Cheap Wave Soldering PCB Unloader for Production Line Exporters, Exporter

The Wave Soldering Belt Unloader ensures stable and efficient PCB transfer with its high-temperature antistatic belt and heavy-duty structure. Built under strict quality standards, it delivers reliable long-term performance. Professional after-sales support and spare parts service are provided to guarantee smooth production operation.

Send Inquiry

Product Description

Specification

Item	Specification
Dimensions (L × W × H)	1200 × 485 × 1400 mm
PCB Width	50 – 400 mm (Customizable)
Transport Height	750 – 1300 mm ±20 mm
Conveyor Belt	High-temperature antistatic belt
Control Mode	Motor-driven
Cooling Method	Fan cooling
PCB Transfer Direction	Left → Right or Right → Left
Power Supply	1 Phase AC 220V 50/60Hz
Weight	280 kg

Application

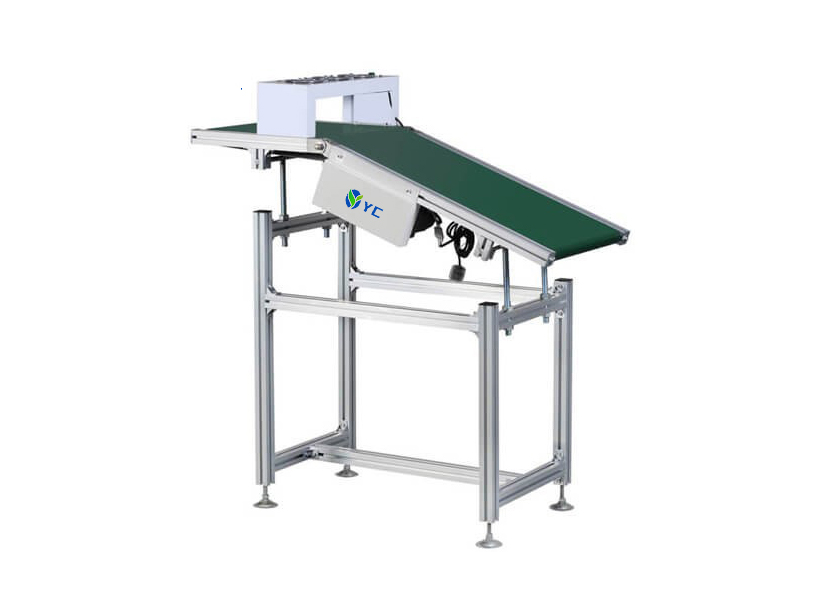

Wave Soldering Belt Unloader

The Wave Soldering Belt Unloader is designed to transfer soldered PCBs smoothly from the wave soldering machine to the next process. It ensures stable conveying performance and effective cooling after soldering.

Key Features

Modular design, configurable according to requirements.
Heavy-duty steel structure for enhanced stability and durability.
High-temperature resistant antistatic conveyor belt.
Additional cooling fans available for improved heat dissipation.
Flexible adjustable conveying height to match production line requirements.
Reinforced heavy base design to prevent shifting during operation.

Frequently Asked Questions

1. Is the conveyor belt speed adjustable?

Yes, the motor-driven system allows for controlled transport speeds to suit your production needs.

2. Can the machine handle different PCB widths?

Yes, the system is designed to accommodate PCB widths ranging from 50mm to 400mm, with customizable options available.

3. What is the primary function of this unit?

It is primarily used to transfer soldered PCBs from a wave soldering machine to subsequent process stations while ensuring proper cooling.

4. Is the conveyor belt heat-resistant?

Yes, the machine utilizes a high-temperature antistatic belt specifically designed for post-soldering environments.

5. Can the transfer direction be changed?

The system supports bi-directional transfer, allowing it to be configured for either Left-to-Right or Right-to-Left workflows.
