Famous SMT Assembly Conveyor Line for Manual Operations Factories, Exporters
1 / 1
Famous SMT Assembly Conveyor Line for Manual Operations Factories, Exporters

Famous SMT Assembly Conveyor Line for Manual Operations Factories, Exporters

This Manual Insertion Line offers stable chain transmission, adjustable guide rails, and ergonomic design for efficient PCB assembly. Built with high-quality steel structure and anti-static protection, it ensures reliable operation and long service

Send Inquiry

Product Description

Specification

Dimensions (L × W × H)2400 × 650 × 1900 mm
Weight60 kg
Working Height750 ± 20 mm
PCB Width0 – 350 mm (Customizable)
Conveyor DirectionLeft → Right or Right → Left (Optional)
Conveyor Speed0 – 5 m/min
Transmission MethodChain conveyor
Power Supply1 Phase AC 220V 50/60Hz

Key Features

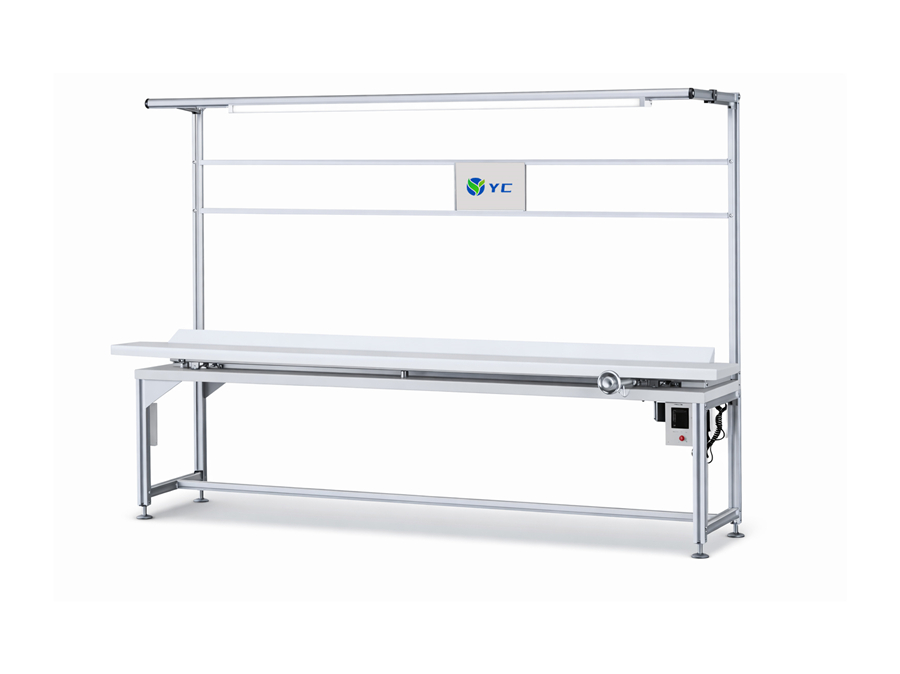

The Manual Insertion Line provides stable and efficient PCB transport with adjustable speed and ergonomic design. Built with high-quality steel and anti-static protection, it ensures reliable operation and long-term durability.

PCB
Drive System: 1Φ 220V 60W variable speed motor, 1–5 m/min, nylon chain.
Adjustable Guide Rail: 50 × 60 mm anti-jam aluminum rail, width adjustable 50–250 mm.
Frame Structure: 40 × 40 mm steel tube welded frame, 1.5 mm cold-rolled steel panels.
Lighting: 28W dual T5 energy-saving lamps with independent control.
Anti-static Protection: Φ4 mm anti-static copper wire.
Surface Finish: Electrostatic powder coating, computer white.

FAQ

Is the conveyor direction reversible?
Yes, the conveyor direction can be configured as Left to Right or Right to Left based on your requirements.
Can the PCB width be customized?
Yes, the standard PCB width is 0–350 mm and it can be customized to suit your production line needs.
Does the system include anti-static protection?
Yes, the unit is equipped with a Φ4 mm anti-static copper wire for safety.
What type of lighting is used?
The system features 28W dual T5 energy-saving lamps with independent control for optimal visibility.
What is the power requirement?
The equipment operates on a 1 Phase AC 220V 50/60Hz power supply.
