Cheap YC-ALI 2D Automated Optical Inspection Manufacturer, Exporter
1 / 1
Cheap YC-ALI 2D Automated Optical Inspection Manufacturer, Exporter

Cheap YC-ALI 2D Automated Optical Inspection Manufacturer, Exporter

AI Deep Learning Algorithms
AI Automated Programming
Large Format
Supports a maximum inspection area of 510 mm × 730 mm
High-Precision Frame Platform
The monolithic cast marble frame platform, combined with
servo motors driving high-precision ball screws, ensures
the inspection platform’s high precision and stability. Having
passed all precision testing criteria set by the third-party German organization CTQ,
each unit undergoes rigorous testing
before shipment to guarantee the platform’s accuracy.

Send Inquiry

Product Description

Technical Specification

CategoryItemDetails
Appearance/ElectricalDimensions1090*1500*1534 mm
Appearance/ElectricalWeight1150kg / 1200kg
Appearance/ElectricalPower Supply200-240VAC 50/60Hz
PCBAPCB Dimensions50x50 to 510x730 mm
Visual SettingsLight SourceRGB ring + coaxial + low-angle white light

Key Features

Proprietary AI Models Developed to cover vast majority of defect types in the SMT industry, providing robust performance from subtle imperfections to significant anomalies.
High-Efficiency Inspection Capable of detecting micro-components as small as 0201 (10μm) and 0402, combining traditional algorithms with cutting-edge AI.
PCB Warpage Solutions Tailored hardware and software design ensures consistent and stable inspection results even after reflow soldering.

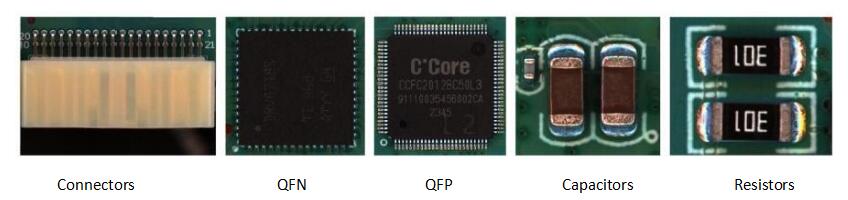

AOI Inspection System

Frequently Asked Questions

What is the smallest component this system can detect?The system can detect components as small as 0201 using the 10μm lens.
Does the system support Windows 11?Yes, it comes with Windows 10 standard and Windows 11 is available as an option.
How does the system handle PCB warpage?It uses specialized hardware and software design to maintain stability and accuracy on warped substrates.
What is the power consumption?The rated power consumption for the system is 1.8 kW.
Can the inspection direction be configured?Yes, the PCB flow direction is freely configurable in the software.
What lighting methods are used?The system utilizes a combination of RGB ring light, coaxial light, and low-angle white light.
